Destino™ Bi-directional Steerable Guiding Sheath

Destino™

Bi-directional Steerable Guiding Sheath

The Oscor Destino™ is a next generation bi-directional steerable guiding sheath for the introduction and placement of diagnostic and therapeutic devices into the human vasculature, including but not limited to intracardiac, transseptal, and other placements.

Featuring a next generation hemostatic valve and braided FlexSteer™ Shaft Technology, the Destino™ is the only available steerable sheath in a size range of 8.5 F, 10 F, and 12 F with true bi-directional tip deflections of 180°.

  • Bi-directional steering allows dual deflection for maximum maneuverability
  • Ergonomic handle with curve diameter and French size indicator provides precise control and more comfort
  • Reliable valve provides effective hemostasis and seals down to a 0.014 inch guidewire
  • Maximum compatible guidewire 0.038″/0.97 mm
  • Dilator tip construction and depth markings ensures exact needle exposure
  • Soft, atraumatic tip reduces potential for trauma during transseptal punctures and provides smooth transition to catheter
  • Radiopaque tip marker enhances fluoro visibility
  • Steerable hydrophobic coated sheath improves access to hard-to-reach sites and eliminates need to change out sheaths to reach desired position
  • Braided Flexsteer™ shaft provides exceptional torqueability, pushability, and kink resistance

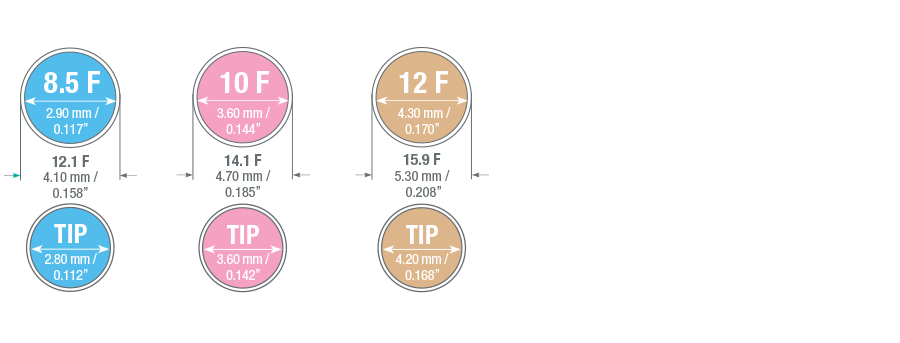

Diameter Options

Diameter Options

Curve Configurations

Curve Configurations

Product Diagram

Product Diagram
Product Features

Straight Dilator Kit includes:

  • (1) Destino™ Steerable Guiding Sheath
  • (1) Straight Dilator
  • (1) Guidewire OD: 0.035″, L: 180 cm
Model # Set
(One per box)
A1
Sheath Inner Diameter
A2
Usable Sheath Length
B1
Usable Dilator Length
B2
Overall Dilator Length
A3
Sheath Curve Size
C
Compatible Transseptal Needle
DS857117GW 8.5 F 71 cm 94 cm 96 cm 17 mm 98 cm
DS857122GW 8.5 F 71 cm 94 cm 96 cm 22 mm 98 cm
DS857150GW 8.5 F 71 cm 94 cm 96 cm 50 mm 98 cm
DS106722GW 10 F 67 cm 90 cm 92 cm 22 mm 98 cm
DS126750GW 12 F 67 cm 90 cm 92 cm 50 mm 98 cm

Straight Dilator Set includes:

  • (1) Destino™ Steerable Guiding Sheath
  • (1) Straight Dilator
Model # Set
(One per box)
A1
Sheath Inner Diameter
A2
Usable Sheath Length
B1
Usable Dilator Length
B2
Overall Dilator Length
A3
Sheath Curve Size
C
Compatible Transseptal Needle
DS857117 8.5 F 71 cm 94 cm 96 cm 17 mm 98 cm
DS857122 8.5 F 71 cm 94 cm 96 cm 22 mm 98 cm
DS857150 8.5 F 71 cm 94 cm 96 cm 50 mm 98 cm
DS106722 10 F 67 cm 90 cm 92 cm 22 mm 98 cm
DS126750 12 F 67 cm 90 cm 92 cm 50 mm 98 cm

50° Curve Dilator Kit includes:

  • (1) Destino™ Steerable Guiding Sheath
  • (1) 50° Curved Dilator
  • (1) Guidewire OD: 0.035″, L: 180 cm
Model # Set
(One per box)
A1
Sheath Inner Diameter
A2
Usable Sheath Length
B1
Usable Dilator Length
B2
Overall Dilator Length
A3
Sheath Curve Size
C
Compatible Transseptal Needle
DC857117GW 8.5 F 71 cm 94 cm 96 cm 17 mm 98 cm
DC857122GW 8.5 F 71 cm 94 cm 96 cm 22 mm 98 cm
DC857150GW 8.5 F 71 cm 94 cm 96 cm 50 mm 98 cm
DC106722GW 10 F 67 cm 90 cm 92 cm 22 mm 98 cm
DC126750GW 12 F 67 cm 90 cm 92 cm 50 mm 98 cm

50° Curve Dilator Set includes:

  • (1) Destino™ Steerable Guiding Sheath
  • (1) 50° Curved Dilator
Model # Set
(One per box)
A1
Sheath Inner Diameter
A2
Usable Sheath Length
B1
Usable Dilator Length
B2
Overall Dilator Length
A3
Sheath Curve Size
C
Compatible Transseptal Needle
DC857117 8.5 F 71 cm 94 cm 96 cm 17 mm 98 cm
DC857122 8.5 F 71 cm 94 cm 96 cm 22 mm 98 cm
DC857150 8.5 F 71 cm 94 cm 96 cm 50 mm 98 cm
DC106722 10 F 67 cm 90 cm 92 cm 22 mm 98 cm
DC126750 12 F 67 cm 90 cm 92 cm 50 mm 98 cm
