Destino™ Twist

Destino™ Twist

Deflectable Steerable Guiding Sheath

The Oscor Destino™ Twist is a steerable guiding sheath that offers a deflectable tip with an ergonomic handle. The Destino™ Twist is the ultimate tool in gaining access to the most difficult to reach sites while maintaining hemostasis with Oscor SureSeal™ technology. The Destino™ Twist is your one sheath solution intended to facilitate the intracardiac, renal, and peripheral placements of diagnostic and therapeutic devices.

  • Ergonomic handle with clear imprint of the curve deflection, french size and sheath length
  • Tip position indicator showing neutral or deflected curve
  • Accurate tip deflection response to handle collar rotation
  • Soft, atraumatic tip reduces potential for trauma and provides smooth transition to catheter
  • Radiopaque tip marker enhances fluoro visibility
  • Curve retention for accurate catheter placement
  • Hydrophobic coated sheath improves access
  • Braided Flexsteer™ shaft provides exceptional control torqueability, and kink resistance
  • Snap-locking and screw-locking dilator connector
  • Accepts maximum guidewire up to 0.038″/0.97 mm
Product Brochure

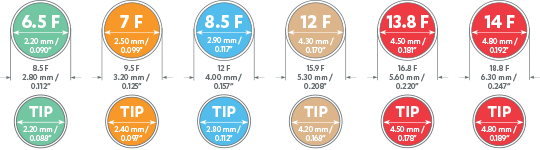

Diameter Options

Diameter Options

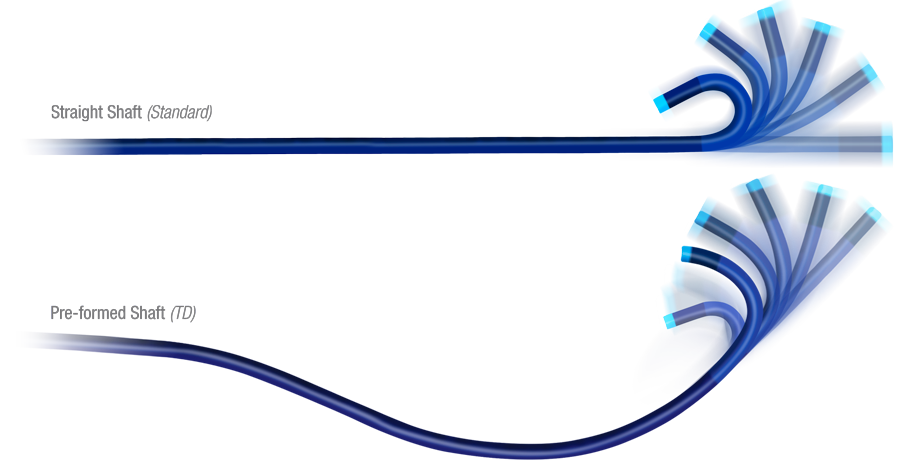

Curve Configurations

Curve Configurations
Curve Configurations

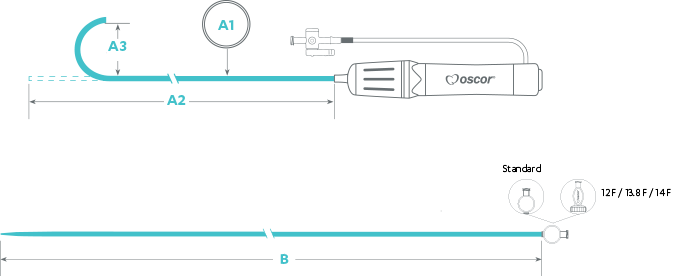

Product Diagram

Product Diagram
Product Features

6.5 F Standard includes:

  • (1) Destino™ Twist steerable guiding sheath
  • (1) Destino™ Twist straight dilator

* Contains second soft dilator with 80 cm usable length.

Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST0654509 6.5 F 45 cm 63 cm 9 mm
DST0654517 6.5 F 45 cm 63 cm 17 mm
DST0655507D2* 6.5 F 55 cm 73 cm 7 mm
DST0655509 6.5 F 55 cm 73 cm 9 mm
DST0655517 6.5 F 55 cm 73 cm 17 mm
DST0656509 6.5 F 65 cm 83 cm 9 mm
DST0659009 6.5 F 90 cm 108 cm 9 mm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST0654509TD 6.5 F 45 cm 63 cm 9 mm
DST0655509TD 6.5 F 55 cm 73 cm 9 mm
DST0656509TD 6.5 F 65 cm 83 cm 9 mm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST0704509 7 F 45 cm 63 cm 9 mm
DST0704517 7 F 45 cm 63 cm 17 mm
DST0705509 7 F 55 cm 73 cm 9 mm
DST0705517 7 F 55 cm 73 cm 17 mm
DST0706509 7 F 65 cm 83 cm 9 mm
DST0707517 7 F 75 cm 93 cm 17 mm
DST0709009 7 F 90 cm 108 cm 9 mm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST0704509TD 7 F 45 cm 63 cm 9 mm
DST0705509TD 7 F 55 cm 73 cm 9 mm
DST0706509TD 7 F 65 cm 83 cm 9 mm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST0854517 8.5 F 45 cm 63 cm 17 mm
DST0855517 8.5 F 55 cm 73 cm 17 mm
DST0856517 8.5 F 65 cm 83 cm 17 mm
DST0859017 8.5 F 90 cm 108 cm 17 mm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST1209030 12 F 90 cm 108 cm 30 mm
Model A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend		 C
Compatible Transseptal Needle
DST1387139 13.8 F 71 cm 89 cm 39 mm 98 cm
Model # Set
(One per box)		 A1
Sheath Inner Diameter		 A2
Usable Sheath Length		 B
Usable Dilator Length		 A3
Curve Bend
DST1405525 14 F 55 cm 73 cm 25 mm
DCT1407125NM 14 F 71 cm 89 cm 25 mm
